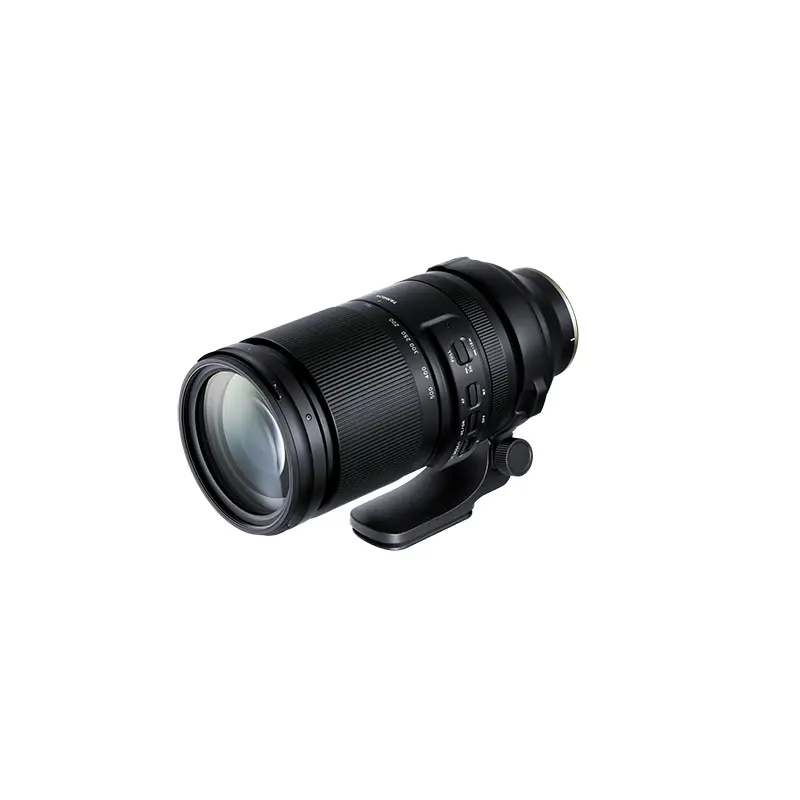

Model A057x
FUJIFILM X
Unprecedented ultra-telephoto 500mm zoom sets your creative vision free
Considering its pairing with mirrorless cameras, TAMRON pursued a compact size that allows handheld shooting while developing the 150-500mm F5-6.7 (a full-frame equivalent of 225-750mm on APS-C cameras)1. With a length of 209.6mm (8.3in)2 and maximum diameter of 93mm, the 150-500mm F5-6.7 is astonishingly compact for a 500mm-class ultra-telephoto zoom lens. Even when extended to the 500mm telephoto end, the lens has a length of around 283mm (11.1in)2. Another distinctive feature is that the arc of rotation of the zoom ring is small—only 75°—which enables swift adjustment to the desired focal length with minimal movement.
1 When a full-frame camera is used, focal length is 150-500mm.
When an APS-C camera is used, the focal length is 225-750mm (full-frame equivalent).
2 Length and weight are based on the Sony-mount lens.
In addition to covering a broad range of focal lengths, the 150-500mm F5-6.7 has high resolving power with excellent image-rendering performance across the entire zoom range. The optical construction features 25 elements in 16 groups. The effective placement of special lens elements—including one XLD (eXtra Low Dispersion), five LD (Low Dispersion) and two hybrid aspherical lens elements—enables the 150-500mm F5-6.7 to produce clear images while controlling chromatic aberrations. BBAR-G2 (Broad-Band Anti-Reflection Generation 2) Coating is used to suppress ghosting and flare, which commonly occur under backlit conditions. These features allow the lens to produce finely detailed images of a wide variety of subjects including wild animals, birds, nature, and sports, while producing soft and beautiful bokeh effects.
The 150-500mm F5-6.7 zoom’s AF drive system is equipped with the VXD (Voice-coil eXtreme-torque Drive) linear motor focus mechanism. VXD delivers extreme high-speed and high-precision movement and ensures exceptionally responsive performance. Focus tracking performance is also very high. The linear motor also suppresses drive noise and vibrations during focusing, making it ideal for shooting both still photos and video in environments that demand quietness.
When shooting in the ultra-telephoto range, even the smallest vibrations can lead to loss of image clarity. The 150-500mm F5-6.7 is equipped with VC functionality to support sharp images despite unavoidable camera shake. VC delivers powerful support for handheld shooting of scenes with low light levels, such as evening scenes and indoor shots, without the use of a tripod. The lens also features a VC mode selection switch with three modes including a dedicated panning mode (Mode 1: Standard, Mode 2: Exclusively for Panning, and Mode 3: Framing Priority), thereby enabling selection of the ideal VC mode to match shooting conditions and preferences.
Camera: Sony α7R IV Focal length: 500mm Exposure: F6.7 1/30sec ISO 3200
The 150-500mm F5-6.7 lets users freely enjoy telephoto macro shooting of subjects at close-up distances. The lens has an MOD of 0.6m (23.6in) at the 150mm end, and 1.8m (70.9in) at the 500mm end. More remarkably, the maximum magnification ratio at the 150mm end is 1:3.1, offering excellent close-up shooting capabilities for an ultra-telephoto zoom lens. In addition to capturing dynamic shots by getting close to the subject, it enables tele-macro photography at close range, something that is not possible with conventional ultra-telephoto zoom lenses. The 150-500mm F5-6.7 can be used in a wide range of situations from plants to insects to tabletop photography.
Camera: Sony α7R IV Focal length: 150mm Exposure: F8 1/100sec ISO 400
Switchboxes of the 150-500mm F5-6.7 employs different functions for each compatible mount.
The Sony E and FUJIFILM X-mount version features a VC mode selection switch with three modes, thereby enabling selection of the ideal VC mode to match shooting conditions and preferences.
The FUJIFILM X-mount version features an "MF SPEED switch”. The switch allows you to select between two focusing speeds during manual focus shooting. This switch is useful when you are using the camera's LCD monitor to magnify the image for precise focusing. It facilitates accurate shooting in the telephoto to ultra-telephoto range of 225-750mm (full-frame equivalent).
The Nikon Z mount version features a Linear/Non-Linear switch to change the response of the focus ring when using the manual focusing setting. This allows you to shoot according to your intention, depending on the shooting scene, such as focusing precisely on subjects in the distance or video recording.
In the development and design of the 150-500mm F5-6.7 zoom, TAMRON emphasized usability so that users can fully immerse themselves in the world of ultra-telephoto zoom lenses without minor annoyances.
The end of the lens hood is protected with a flexible, shock-absorbing front rim to help prevent cracks and damage.
The zoom ring rotation arc is only 75°, allowing quick adjustment to the desired focal length with minimal movement.
Quickly locks or unlocks the zoom at any position, preventing unintentional lens extension.
Improved ergonomics guide your finger naturally into position, while the low-profile design prevents accidental operation.
Strap attachment holes are integrated into the tripod mount, ensuring excellent balance and ease of handling.
Innovative coating technology that prevents ghosting and flare
A several-blade diaphragm is configured to retain a smooth, circular-shaped aperture opening even when stopped down by two stops from the wide-open aperture
Leak-resistant seals throughout the lens barrel help protect your equipment when shooting outdoors
XLD lens elements made from specialized ultra-high-grade glass allow much greater control over chromatic aberration and magnification aberrations
The characteristic of less of a tendency to separate a ray of light into a rainbow of colors effectively compensates for chromatic and lateral chromatic aberration
A highly durable protective fluorine compound that is water- and oil-repellant

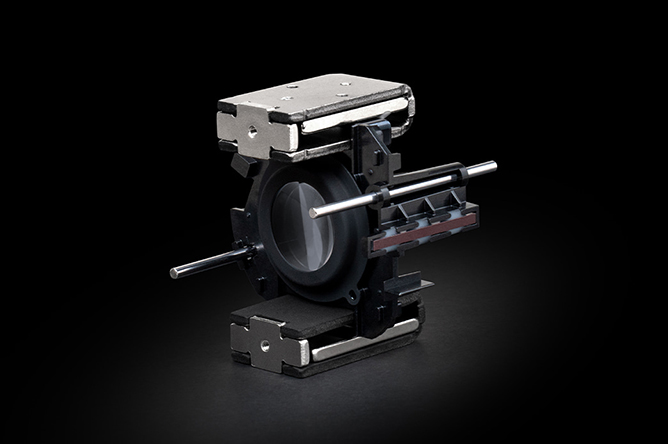

A linear motor focus mechanism for the highest levels of autofocus speed and precision

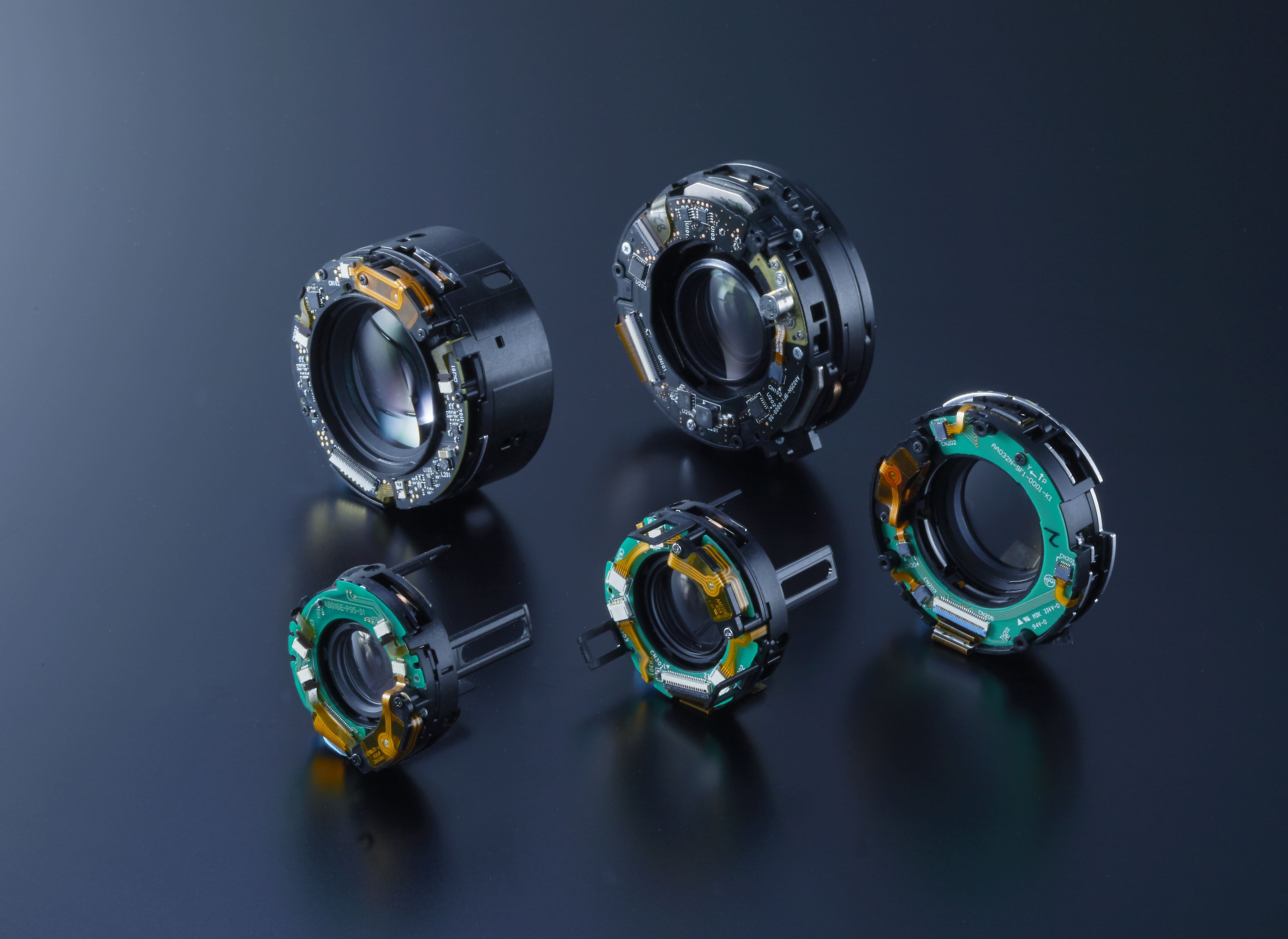

TAMRON's unique VC mechanism effectively minimizes the effect of camera-shake and delivers a stable viewfinder image

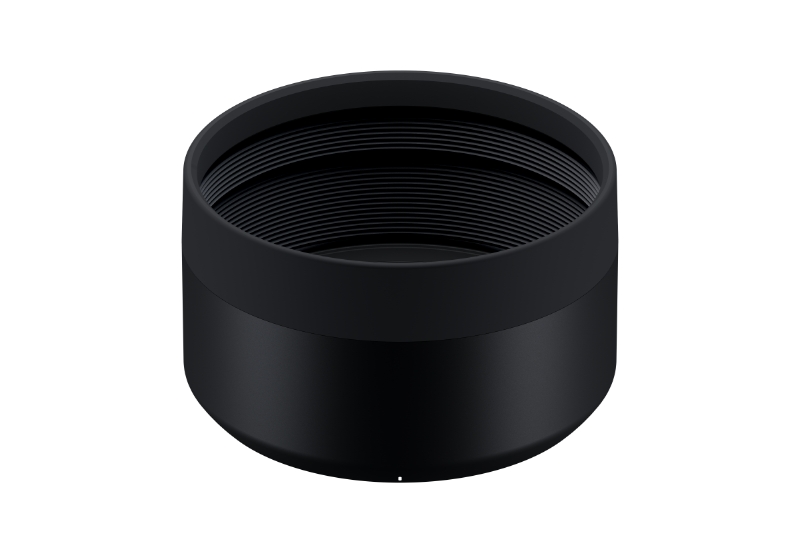

The end of the included lens hood is protected with flexible, shock-absorbing front rim to prevent cracks and damage
| Maximum Diameter | Φ93mm |
|---|---|
| Minimum Aperture | F22-32 |
| Mount | FUJIFILM X Mount |
| Standard Accessory | Round-shaped hood, Lens caps, Tripod mount |
| Release Date | October 13, 2022 (FUJIFILM X Mount) |
| Length* | 209.9mm / 8.3 in (FUJIFILM) |
| Aperture Blades | 7 (circular diaphragm) |
| Angle of View (diagonal) | 16°25′- 4°57 (for full-frame mirrorless format) , 10°59′- 3°18′ (for APS-C frame mirrorless format) |
| Optical Construction | 25 elements in 16 groups |
| Minimum Object Distance | 0.6m (23.6 in) (WIDE) / 1.8m (70.9 in) (TELE) |
| Maximum Magnification Ratio | 1:3.1 (WIDE) / 1:3.7 (TELE) |
| Filter Size | Φ82mm |
| Weight | 1,710g / 60.3 oz (w/o tripod mount) / (FUJIFILM) tripod mount 155g / 5.5 oz |
* Length is the distance from the front tip of the lens to the lens mount face.
** The circular diaphragm stays almost perfectly circular up to two stops down from maximum aperture.
Specifications, appearance, functionality, etc. are subject to change without prior notice.
FUJIFILM X-T3
395.2mm (full-frame equivalent: 592.8mm)
F6.3
1/950sec
ISO320
6240px × 4160px (11.8MB)
FUJIFILM X-T3
150mm (full-frame equivalent: 225mm)
F8
1/40sec
ISO320
6240px × 4160px (23.6MB)
FUJIFILM X-T4
207.4mm (full-frame equivalent: 311.1mm)
F5
1/240sec
ISO3200
